Air Management System
AMS20/30/40/60 Series
Advanced air management system designed for industrial automation and pneumatic control applications.
- OPC UA compatible communication
- Monitoring software support
- HMI touch panel monitoring tool
- Maximum 62% air consumption reduction
- Wireless communication compatibility
- IO-Link compatible
Product Information
The Air Management System AMS20/30/40/60 is designed to improve pneumatic efficiency and reduce unnecessary air consumption in industrial automation systems.

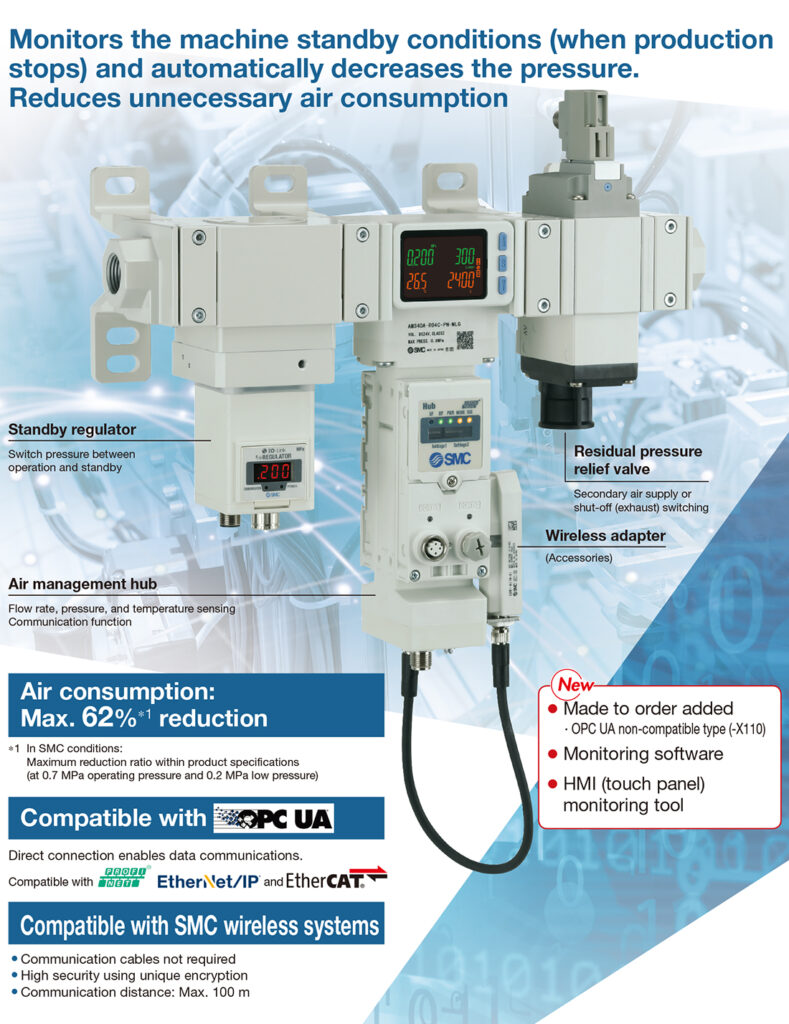

The system monitors machine standby conditions and automatically decreases pressure levels, helping industries optimize energy usage and improve operational efficiency.
This advanced air management solution supports OPC UA communication, wireless connectivity, IO-Link integration, and industrial monitoring systems for modern automation environments.
Technical Specifications
| Series | AMS20 / AMS30 / AMS40 / AMS60 |
|---|---|
| Port Size | 1/8 to 1 |
| Flow Capacity | 5 to 4000 L/min |
| Communication Protocol | PROFINET, EtherNet/IP™, OPC UA, EtherCAT |
| Output Data | Pressure, Flow, Temperature, IO-Link Diagnostic Data |
Main Features
Air consumption: Max. 62%*reduction
* In SMC conditions: Maximum reduction ratio within product specifications (at 0.7 MPa operating pressure and 0.2 MPa low pressure)

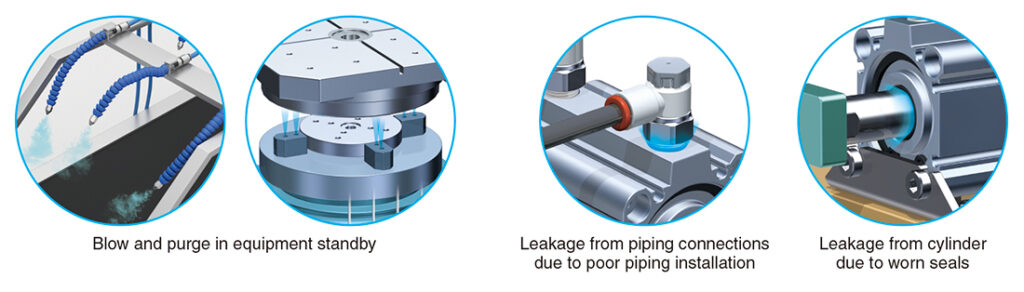

Why not reduce the wasted air generated by your factory equipment?
Reduced air consumption due to lower pressure during production stoppages/equipment standby (Standby mode)
Reduce air consumption by shutting off valves depending on equipment shutdown conditions (Isolation mode)
Residual pressure exhaust valve allows further reduction of air consumption by shutting off the air supply. Automatic isolation mode is also provided that can be turned off after a set time from standby mode.
Visualization of production equipment status (IoT)
Flow, pressure, temperature, and other sensor information can be communicated to the host system via Industrial Ethernet or the OPC UA data communication protocol.

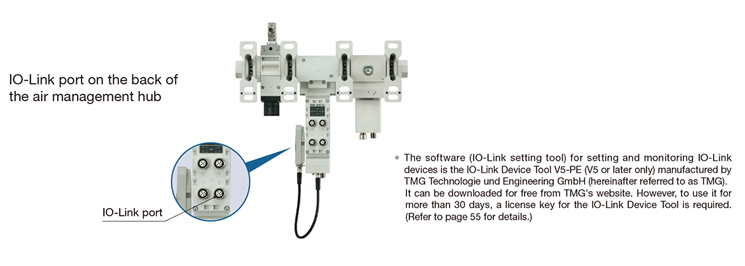

IO-Link compatible
Examples of IoT applications with Air Management System
Compatible with SMC wireless systems
System Configuration
